The DC-1300 is a high-quality, general-purpose drill chuck designed to hold tools with diameters ranging from 2mm to 13mm, including twist drills, hole saws, and more. Featuring a 1/2-20UNF thread specification, it is compatible with a wide range of drilling machines and applications.
To accommodate different machine types, the DC-1300 is available in multiple adapter-integrated sets for fast and secure installation:

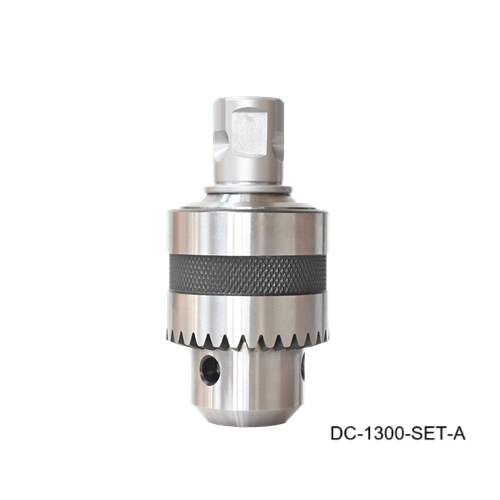

DC-1300 Set-C (with ADCTM-1300 adapter)
Directly compatible with drilling machines for pipes, including WS-3500CH and WS-4500CH.

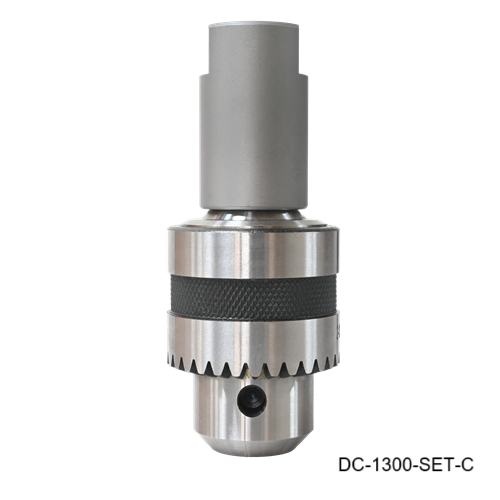

DC-1300 Set-A (with ADCTH-Q1300 adapter)
Designed for use with all models in the M-series magnetic drilling machines, including WS-3500M, WS-4500M
Designed for use with all models in the PM-series magnetic drilling machines, including WS-3500PM, WS-4500PM
DC-1300 Set-B (with ADCTH-W1300 adapter)
Designed for use with all models in the M-series magnetic drilling machines, including WS-3500M, WS-4500M
Designed for use with all models in the PM-series magnetic drilling machines, including WS-3500PM, WS-4500PM
Specifications
PRODUCT
DC-1300
DRILL CHUCK SCREW
1/2-20UNF
TWIST DRILL CAPACITY
2-13mm
