ACCESSORIES & OTHERS CHAD-60 Chain Pipe Clamp Adapter Stand

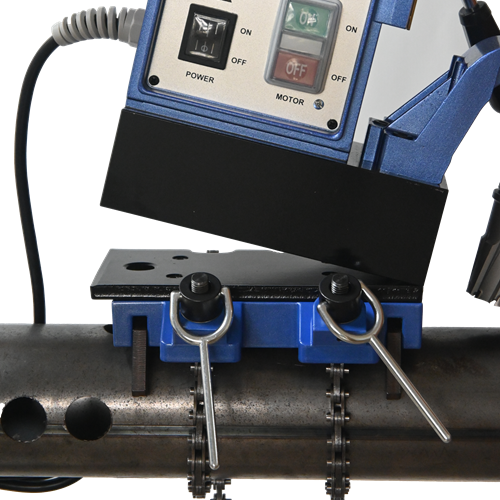

CHAD-60 is designed to assist your magnetic drills in cutting holes on pipes and tubes. With CHAD-60, users can now drill holes on pipes using a common magnetic drilling machine (previously only for iron plates). It is compatible with machines from major brands. Moreover, weighing only 3.5KG, CHAD-60 can be installed on pipes much more easily than an entire drilling machine. We believe CHAD-60 can greatly enhance the efficiency of drilling holes on pipes.

Features

  • Users can easily install it due to its lightweight of only 3.5 kilograms.
  • CHAD-60 enables magnetic drills to cut holes on pipes and tubes, rather than just on iron plates.
  • Equipped with a level device, it can assist the machine in maintaining the correct position

Accessories

  • 120cm Super string chain

Specifications

Model
CHAD-60
Dimension
210 x 160 x 80 mm
Weight
3.5kg
Color
Blue | Red | Silver
Capacity of Pipe Diameter
Min. 50mm (2 inch.) | Max. 200mm (8 inch.)
Capacity of WS Dilling Machine
3500 Series | 4500 Series | 6000 Series
Magnetic Holding Force Requirement
15680N (1600kgf)
